Installing the boost pressure sensor on the intake plenum

• Check the sealing ring (1)  for damage, replace it if necessary.
• Apply a thin coat of lubricant to the sealing ring (1)  of the boost pressure sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

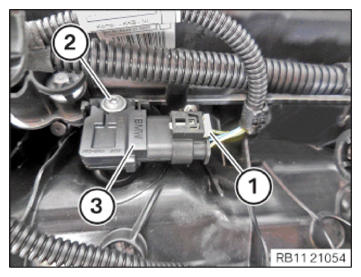

• Insert and install the boost pressure sensor (3)  .
• Tighten down screw (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Boost pressure sensor to intake plenum
  TS6X20	Tightening torque	5 Nm

• Connect and lock the connector (1)  .

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
