Install the boost pressure sensor on the charge air line

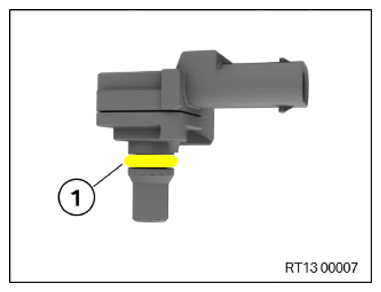

• Check sealing ring (1)  of the boost pressure sensor for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the boost pressure sensor (2)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Boost pressure sensor at the charge air line
  TS5x20	Tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the wiring harness section for the engine (2)  .
• Ensure that locks (1)  engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and connect the engine ventilation line (3)  .

  The engine ventilation line (3)  must snap-in audibly.

• Connect connectors (2)  and lock.

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
