13 62 Engine Sensors
>>
13 62 560 Remove and install/replace hot film air mass meter
>>
Installing hot film air mass meter
Installing hot film air mass meter

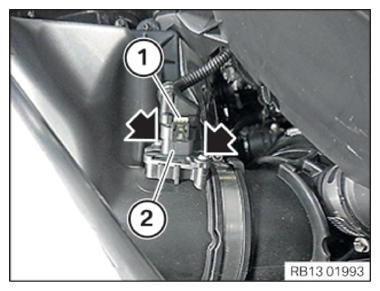

Insert and install the hot film air mass meter
(2)
.
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Hot film air mass meter to intake silencer
Screw TS 4x16
Tightening torque
1.5 Nm
Connect connectors
(1)
and lock.
The connector
(1)
must engage audibly.
