Remove the rail pressure sensor

Preliminary work

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

CAUTION: On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!

Wear suitable personal protective equipment.
Before performing any installation work, allow cooling system to cool down to less than 40°C.
Note warnings on cylinder head cover.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Have the special tool 0 491 318 (13 5 320) ready.

Courtesy of BMW OF NORTH AMERICA, INC.

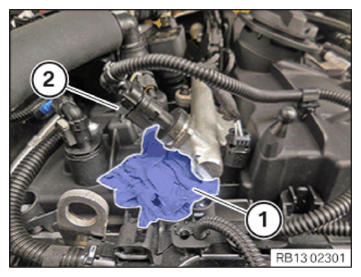

Position a lint-free rag (1) .
Unlock and loosen connector (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

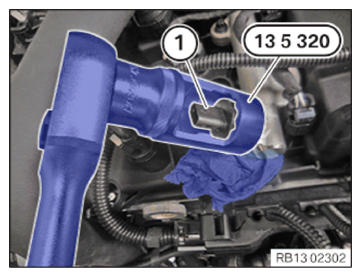

Release the rail pressure sensor (1) with the special tool 0 491 318 (13 5 320) .
Catch and dispose of leakage fuel.

Courtesy of BMW OF NORTH AMERICA, INC.
