Installing the high-pressure rail with injectors of the cylinders 4 to 6

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Mount the holder (1) above the bayonet fitting (2) on the injector.
If the holder (1) has a cast lug: Ensure that the installation position of the holder is correct.

Courtesy of BMW OF NORTH AMERICA, INC.
If necessary, note the position of the cast lug:

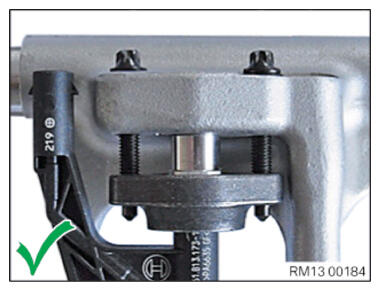

The holder is mounted correctly when the cast lug lies in the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
If necessary, note the position of the cast lug:
The holder is mounted incorrectly when cast lug (1) lies in the front.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to injectors.
Weld seams on the injector may tear due to incorrect distances between the rail and injector so that the injector must be replaced.
- Insertion of the distance gauge is compulsory.
- Replace distance gauge, if a thickness of 8.5 mm is no longer given in the distance gauge.
Use the special tool (distance gauge) 2 358 022 (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace (M5x30) screws.
Parts: Screws (M5x30)
Mount the injectors with the holders and the bolts (M5x30) (1) on the rail.
Place the high-pressure rail on a clean folding table so that the openings on the high-pressure rail for the injectors point upwards.
The electrical injector connections must point towards the fuel pressure sensor.
Slide the special tool (distance gauge) 2 358 022 (2) between the holders and the rail onto the injector head.
Make sure that the special tool (distance gauge) 2 358 022 (2) rests flat on the retaining bridge.
Evenly tighten both screws (M5x30) (1) by hand until the special tool (distance gauge) 2 358 022 (2) rests flat against the high-pressure rail and the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the special tool (distance gauge)2 358 022 (1) .
Repeat operation on all injectors.

Courtesy of BMW OF NORTH AMERICA, INC.
Check injectors for loose fit at the rail.

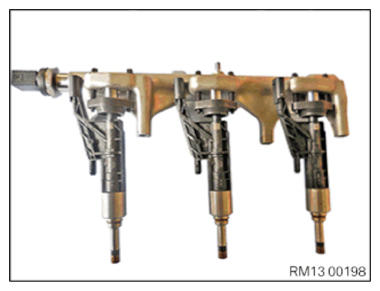

Align the electrical injector connections parallel to the rail.
The injectors must be able to move freely.

Courtesy of BMW OF NORTH AMERICA, INC.
Change screws (A) to (D) .
Parts: Screw

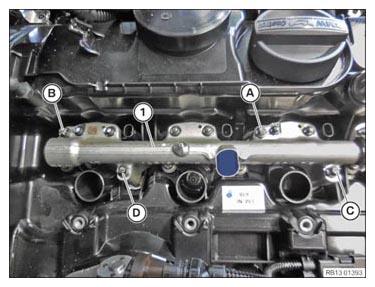

Attach the rail (1) with the injectors to the cylinder head from the top.
Ensure that the injector tips hit the holes provided in the cylinder head for this.
Ensure that the guides on the injector are slid correctly into the guide bore holes in the cylinder head.
Press down until a resistance can be felt, position screws (M6x70) (A) , (B) , (C) and (D) , and turn them until hand-tight.
Set torque wrench to 2 Nm.
Tighten the screws (A) , (D) , (B) and (C) in alternating order by 90° each with the torque wrench until the high-pressure rail is positioned flush on the cylinder head.
The illustration shows the rail lying flat on the cylinder head.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
Tighten screw (A) by 5 Nm.
Tighten screw (D) by 5 Nm.
Tighten screw (B) by 5 Nm.
Tighten screw (C) by 5 Nm.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the rail (1) rests flat against the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert a wrench socket set into an extension.
Do not use a reversible ratchet or torque wrench.

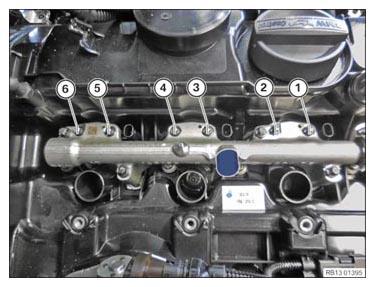

Tighten the bolts (M5x30) in pairs ((1) with (2) , (3) with (4) , (5) with (6) ) in alternating order 90° hand-tight.
Set torque wrench to 5 Nm.
NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Fig 1: Fuel Rail Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the screws (M5x30) according to the following pattern:
- Fuel injector 4:
  - Tighten screw (1) at an angle of rotation of 90° ±15° with the torque wrench.
  - Tighten screw (2) at an angle of rotation of 90° ±15° with the torque wrench.
  - Repeat the steps for screws (1) and (2) until 5 Nm is achieved for the two screws.
- Fuel injector 5:
  - Tighten screw (3) at an angle of rotation of 90° ±15° with the torque wrench.
  - Tighten screw (4) at an angle of rotation of 90° ±15° with the torque wrench.
  - Repeat the steps for screws (3) and (4) until 5 Nm is achieved for the two screws.
- Fuel injector 6:
  - Tighten screw (5) at an angle of rotation of 90° ±15° with the torque wrench.
  - Tighten screw (6) at an angle of rotation of 90° ±15° with the torque wrench.
  - Repeat the steps for screws (5) and (6) until 5 Nm is achieved for the two screws.

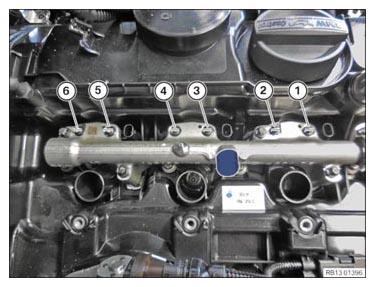

Mark all bolts (1) to (6) with a vertical line (see illustration).
Tighten screws using an angle of rotation.
- Tighten the screw (1) with an angle of rotation of 90° ±15°.
- Tighten the screw (2) with an angle of rotation of 90° ±15°.
- Tighten the screw (3) with an angle of rotation of 90° ±15°.
- Tighten the screw (4) with an angle of rotation of 90° ±15°.
- Tighten the screw (5) with an angle of rotation of 90° ±15°.>
- Tighten the screw (6) with an angle of rotation of 90° ±15°.

  Fig 2: Fuel Rail Screws Tightening Sequence
  Courtesy of BMW OF NORTH AMERICA, INC.
Check if all bolts (1) to (6) have been tightened with a 90° ±15° angle of rotation.
All markings (lines) must be horizontal (see illustration).

Fig 3: Fuel Rail Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Release bolts (M6x70) (A) to (D) .
The screws must be released.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
Tighten screw (A) by 5 Nm.
Tighten screw (D) by 5 Nm.
Tighten screw (B) by 5 Nm.
Tighten screw (C) by 5 Nm.

Courtesy of BMW OF NORTH AMERICA, INC.

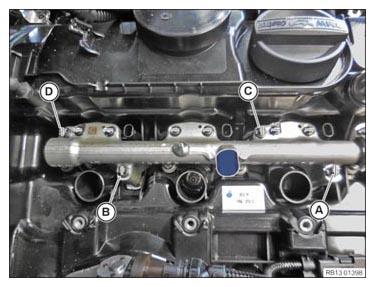

Mark all the bolts (A) to (D) with a vertical line (see illustration).
Tighten bolts (M6x70) (A) to (D) with an angle of rotation of 90°.

Courtesy of BMW OF NORTH AMERICA, INC.

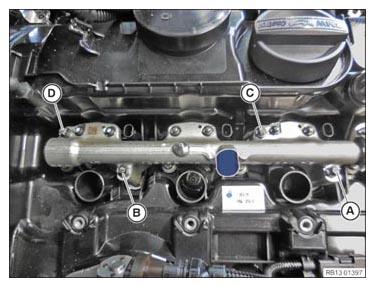

Check if all screws (A) to (D) were tightened with an angle of rotation of 90°.
All markings (lines) must be horizontal (see illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

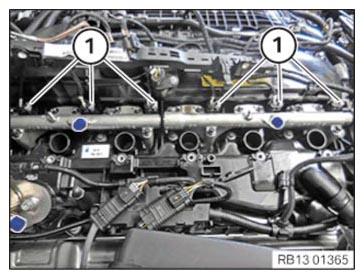

Connect and lock all connectors (1) to the injectors.
All connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

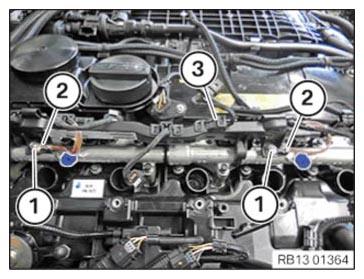

Thread in cable channel (3) and install.
Thread in ground cable (2) and install.

Tighten nuts (1) .

TIGHTENING TORQUES SPECIFICATION

Ground cable to rail
M6	Tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
