Install decorative strip on center of dashboard
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

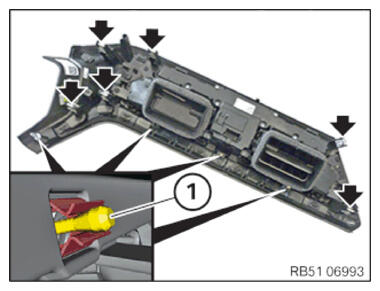

- Check clamps (arrows) for damage.
Malfunctioning or missing clamps must be replaced.
- Check the retaining pins (1)
for damage.
Malfunctioning or missing retaining pins (1) must be replaced.
- Install the decorative strip (1) and connect and lock the present connectors.
- Correctly position the decorative trim (1)
and engage at clips (2)
and retainer pins (3)
.
