Installing the trim panel for the pedal assembly
- Version A:
- Connect respective connectors and lock.

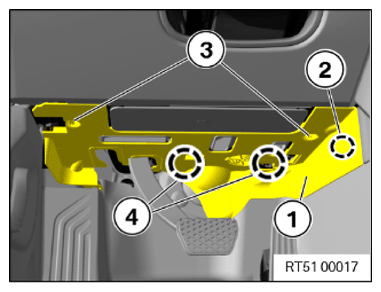

- Hook the trim panel for pedal assembly (1) in the guides (4) and fold it upwards.
- Clip in the trim panel for pedal assembly (1)
in the area (2)
in the center console.NOTE: TECHNICAL INFORMATION
The screw caps of the trim panel must be correctly locked in place. This is the only way to ensure that the trim panel does not loosen and, as a result, tilt into the pedal area. - Insert screw caps (3)
correctly and turn 90° to lock.
- Version B:
- When replacing a trim panel for pedal assembly with snap fastener
: Replace the previously used plastic nuts (1)
on the support for the instrument panel with sheet metal nuts.
- Install the trim panel (1) .
- Connect respective connectors and lock.
- Hook the trim panel (1) in the guides (4) and in the footrest and fold it upwards.
- Insert the trim panel (1) in area (2) in the center console.
- Tighten the screws (3)
.TIGHTENING TORQUE SPECIFICATION
Trim panel for pedal assembly on instrument panel support Oval-head screw Tightening torque 1.8 Nm
