Installing the speaker trim at the dashboard

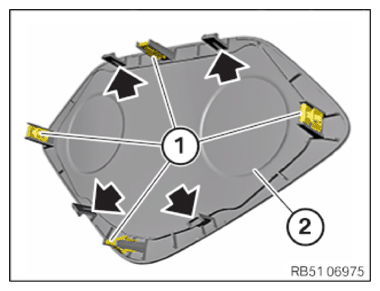

- Check the clamps (1)
for damage.
Defective or missing clamps (1) need to be replaced.
- Check the snap-in hooks (arrows) for damage.
If the snap-in hooks (arrows) are damaged, the speaker trim (2) must be replaced.
- Replacement
:
Stick felt strips of 0.8 mm firmly onto the snap-in hooks (arrows) from above.

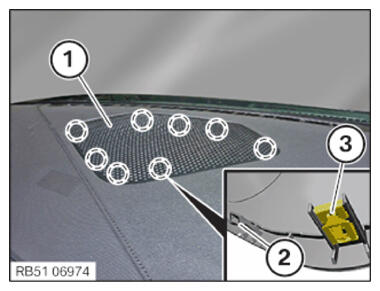

- Install and position the speaker trim (1) .
- Install the speaker trim (1)
and snap it into the clips (2)
and detents (3)
.
