51 43 Interior Side Pillar Trim Panels
>>
51 43 075 Remove and install/replace side trim panel, footwell, on A-pillar, right
>>
Removing the lower right A-pillar trim panel
Removing the lower right A-pillar trim panel
Preliminary work
Refer to
REMOVING RIGHT FOOTWELL TRIM
.
Refer to
REMOVING THE DOOR SILL COVER STRIP ON THE RIGHT
.

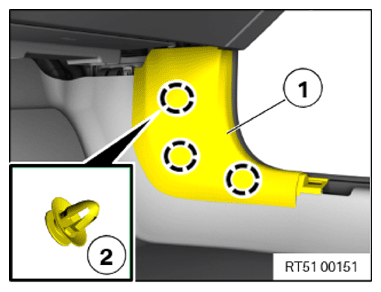

Release the lower right A-pillar trim panel
(1)
at the clips
(2)
and remove inward.
Courtesy of BMW OF NORTH AMERICA, INC.
