Body Equipment -- Repair (G29)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 152 Replacing the storage compartment frame, front
>>
Install the front storage compartment frame
Install the front storage compartment frame

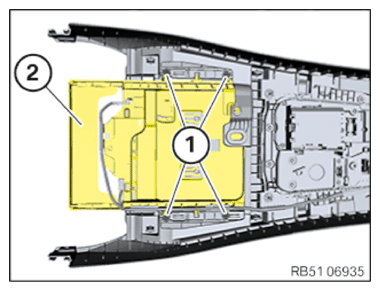

Feed in the storage compartment frame
(1)
.
Tighten down screws
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION
Front storage compartment frame to bracket
Screw
tightening torque
1.5 Nm
