Overview Of Glue Cartridge Guns

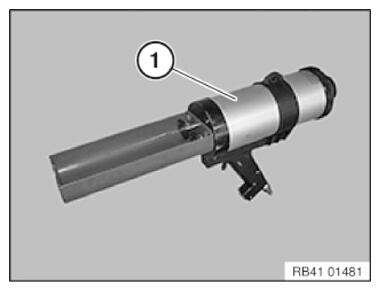

Adhesive gun 83 30 5 A78 8C6 for 50 ml cartridges

Can be used for K4, K5 adhesives.

Can be used for BMW 2K polyurethane foam.

Including insert 1:1 and 2:1.

Courtesy of BMW OF NORTH AMERICA, INC.

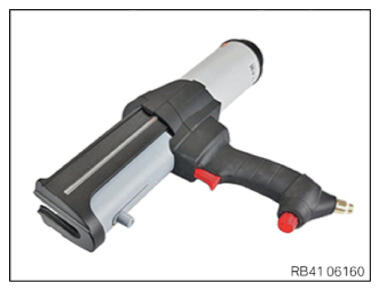

Adhesive gun 81 49 0 443 166

Obtainable via the applicable BMW equipment catalogue.

Can be used for adhesive K3.

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 213 059

Obtainable via the applicable BMW equipment catalogue.

Can be used for adhesives K1, sealant D1/D2, window glass adhesive and all 290 or 310 ml Euro cartridges.

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 355 475

Obtainable via the applicable BMW equipment catalogue.

Can be used for adhesive K2 (2x290 ml glue cartridge)

Courtesy of BMW OF NORTH AMERICA, INC.

Cartridge gun 81 43 5 A5C 138

Obtainable via the applicable BMW equipment catalogue.

Can be used for adhesive K5 (195 ml double cartridge)

Courtesy of BMW OF NORTH AMERICA, INC.
