Installing the pedestrian protection sensor

• Check impact absorber (2) for damage and, if necessary, replace it.

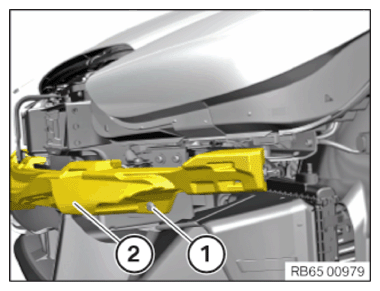

• Carefully insert the active pedestrian protection (1) into the impact absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

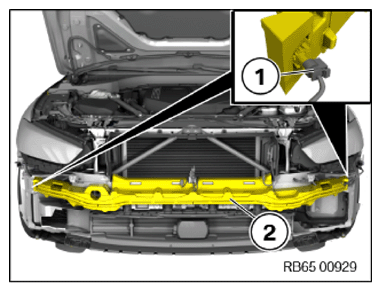

• Connect connectors (1) and lock.
• Attach and correctly position the impact absorber (2) at the top and bottom on the secondary air pump.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the expanding rivet (1) on the impact absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

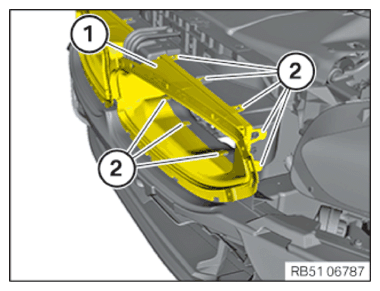

• Install the air duct (1) and engage the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING FRONT RADIATOR GRILL .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
