Audio, Navigation, Anti-Theft, Airbag Control -- Repair (G29)
>>
65 13 Audio System Speakers
>>
65 13 062 Removing and installing/replacing the loudspeaker
>>
Remove tweeter in the dashboard
Remove tweeter in the dashboard
Preliminary work
Refer to
REMOVING THE SPEAKER TRIM AT THE DASHBOARD
.
Refer to
REMOVING THE MID-RANGE SPEAKER FROM THE DASHBOARD
.

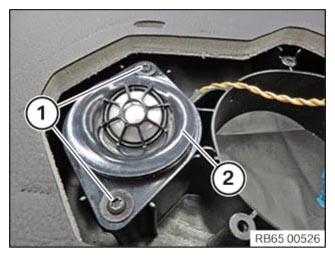

Loosen screws (1).
Guide out and remove the tweeter (2) with the cable.
Courtesy of BMW OF NORTH AMERICA, INC.
