Installing washer fluid reservoir

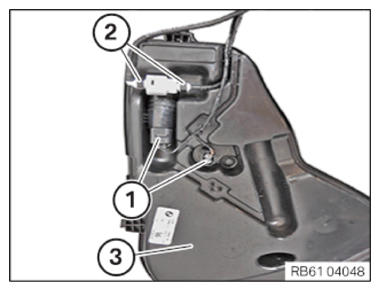

• Connect plug connection (1) and lock.
• Clip in the cable of the washer fluid reservoir (3).
• Connect the hose pipes (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

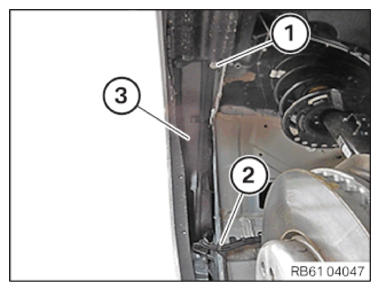

• Position the washer fluid reservoir (3) in the side panel.
• Clip in the hose pipes (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Washer fluid reservoir
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

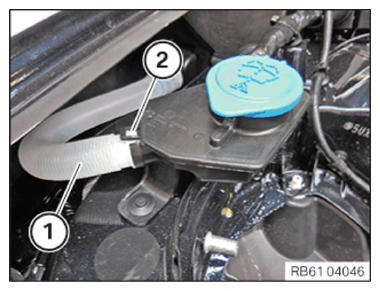

• You must feel the hose (1) engage at the filler channel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALLING THE RIGHT HOOD SEAL .
