Install alternator
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

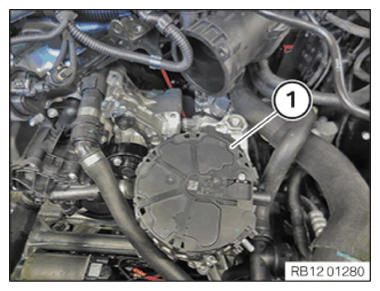

- Guide the alternator (1) in.
- Guide the alternator (1) in the direction of the arrow.
- Install the alternator (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Alternator on component carrier | ||
|---|---|---|
| M10x75 | tightening torque | 38 Nm |
| M10x125 | tightening torque | 38 Nm |
| M10x90 | tightening torque | 38 Nm |
- Insert and install the positive battery cable (2).
- Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable to the alternator | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Connect and lock the connector (3).
- The connector (3) must engage audibly.

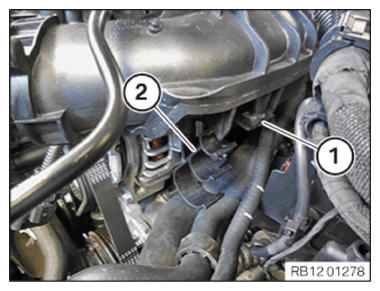

- Insert and install the holder (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Holder on intake plenum | ||
|---|---|---|
| TS5x25 | Tightening torque | 5 Nm |
- Guide the coolant hoses (1) in and install.
Follow-up work
- Refer to FASTENING AIR CONDITIONING COMPRESSOR .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS
