Installing the rear timing case cover
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.

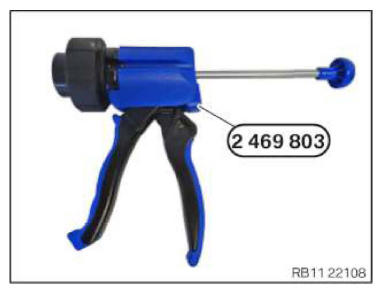

- Have the special tool 2 469 803 ready.

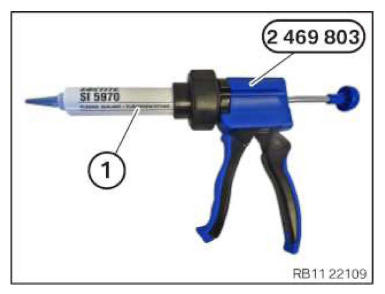

- Position the sealing compound (1) as shown on the special tool 2 469 803.
Parts: Sealing compound
SEALING COMPOUND SPECIFICATION
| Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature | 50 ml, Cartridge | 83190404517 |
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

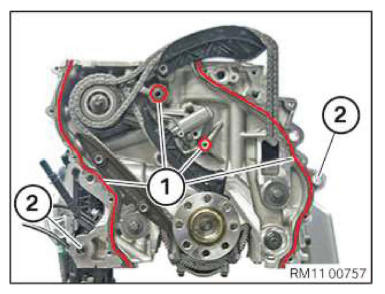

- Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470).
- Clean the sealing surface (1) with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner 2.0 500 ml, Spray can 83192365214 20, Canister 83192365215 - Check the lining sleeves (2) for correct positioning and replace faulty lining sleeves.NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.- Do not use any metal-cutting tools.
NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents. - Remove the seal residue in areas (1) using special tool 0 495 102 (11 4 470).
- Clean the sealing surface (1) with brake cleaner.CONSUMABLE SPECIFICATION
Brake cleaner ZO 500 ml, Spray can 83192365214 20, Canister 83192365215 NOTE: TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.

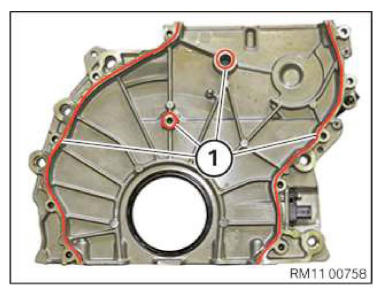

Non-observance can lead to leaks in the assembly. - Apply liquid sealing compound with a strong sealing bead of 1.5 mm to 2.0 mm in areas (1).

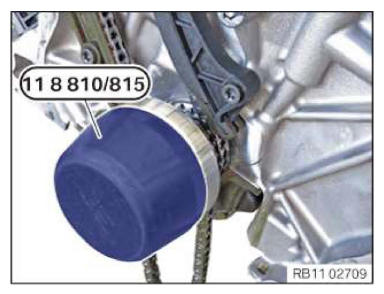

- Install special tool 0 496 137 (11 8 815) on the crankshaft.
- Replace screws (1) to (11).
Parts: Screws
- Carefully install the tinning case cover.

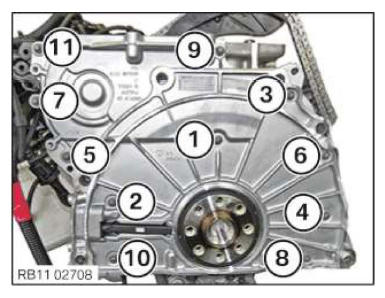

- Tighten the screws in order from (1) to (11).TIGHTENING TORQUES SPECIFICATION

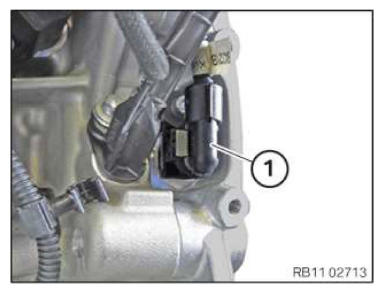

Rear timing case cover on crankcase M6x31 Replace screws. Joining torque 8 Nm Angle of rotation 90° - Connect connector (1).
