Partially removing the fuel filler pipe

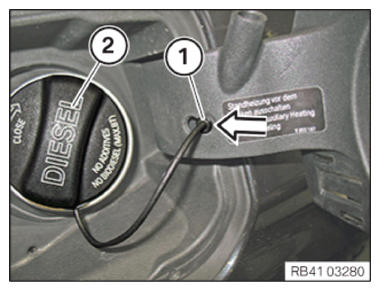

• Detach the retaining strap (1) in the direction of the arrow.
• Remove gas cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

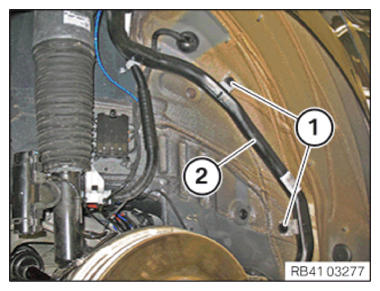

• Loosen nuts (1).
• Detach the fuel filler pipe (2) from the coarse thread bolt.

  Courtesy of BMW OF NORTH AMERICA, INC.

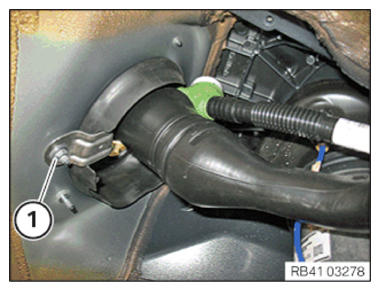

• Unfasten nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

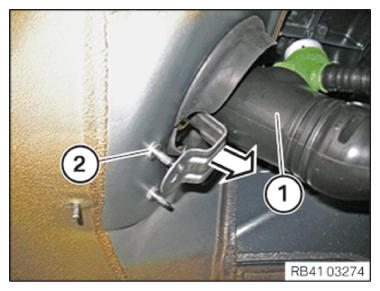

• Detach the fuel filler pipe (1) from the threaded bolt (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
