Partially releasing the front left bumper cover on the side panel
Partially releasing the front left bumper cover on the side panel

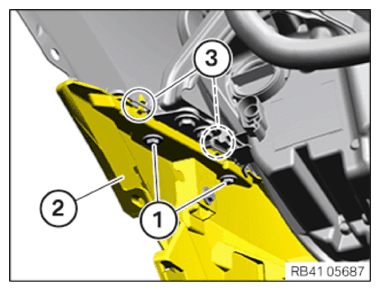

Loosen screws (1).
Release the bumper cover (2) on the detents (3).
Courtesy of BMW OF NORTH AMERICA, INC.

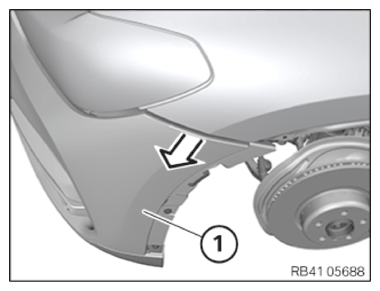

Slightly pull the bumper cover (1) downwards and outwards.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
