Partially installing the fuel filler pipe

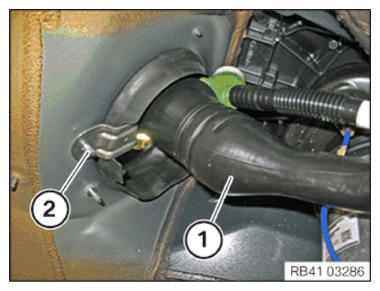

• Position the fuel filler pipe (1) on the coarse thread bolt (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

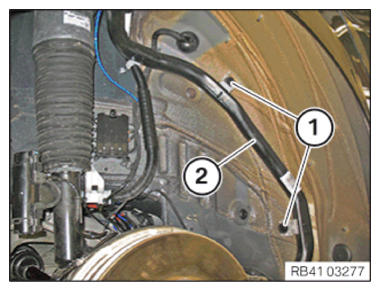

• Position the fuel filler pipe (2).
• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

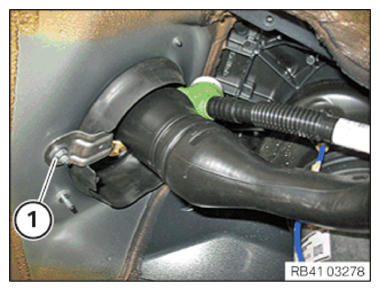

• Tighten nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

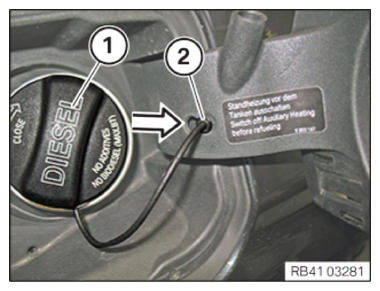

• Mount the gas cap (1).
• Attach the retaining strap (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

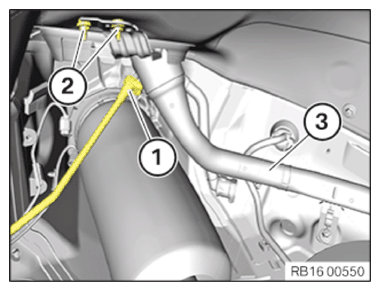

• Insert the fuel filler pipe (3) and position it correctly.
• Replace nuts (2).

  Parts:  Nuts.

• Install the nuts (2) and tighten.
  TIGHTENING TORQUES SPECIFICATION



  Fuel filler pipe on upper body
  Nut M6 Replace nut.	tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

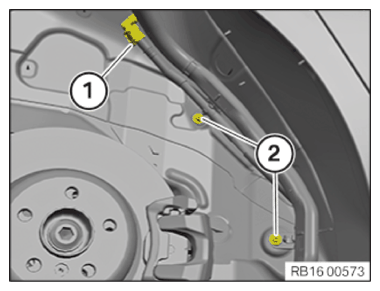

• Position snap fastener (1) and lock.
• Replace nuts (2).

  Parts:  Nut.

• Install the nuts (2) and tighten.
  TIGHTENING TORQUES SPECIFICATION



  Fuel filler pipe to body
  Plastic nut Replace plastic nut.	tightening torque  4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position snap fastener (1) and lock.
• Close sealing cap (1).
• Hook in the retaining strap (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
