Installing the rear emblem

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

Replace the emblem.
Parts: Emblem

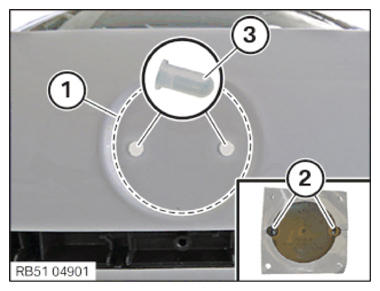

Remove the adhesive residues on the body and clean the bonding surface (1).
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Check the guide pins (2).
The guide pins (2) must not be damaged or missing.
Replace the grommets (3).
Parts: Grommets
Coat the guide pins (2) using lubricant.
INSTALLATION AID DESCRIPTION

Lubricants G14 900 ml, Can 83232360412

Courtesy of BMW OF NORTH AMERICA, INC.

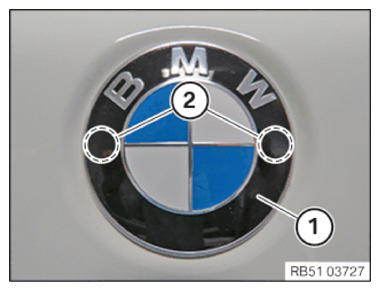

Detach the liner from the adhesive strip of the BMW nameplate.
Press the badge (1) onto the guide pin (2) and on the adhesive strip.

Courtesy of BMW OF NORTH AMERICA, INC.
