Installing the front right bumper cover on the side panel

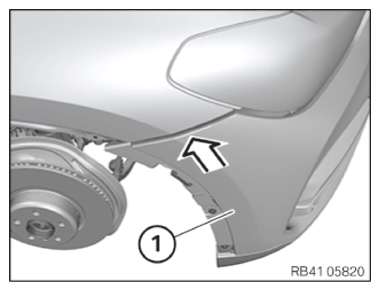

• Position the bumper cover (1) at the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• When positioning the bumper cover, (2) ensure the detents (3) are installed correctly.
  TIGHTENING TORQUES SPECIFICATION



  Front bumper cover on side wall
  Hexagon screw	Tightening torque  3 Nm

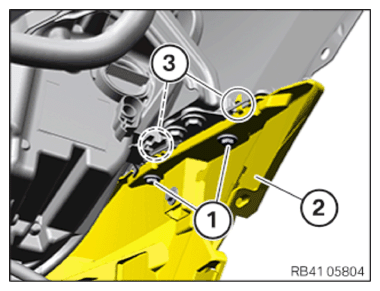

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
