Installing the antenna amplifier

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with tool manufacturer's information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

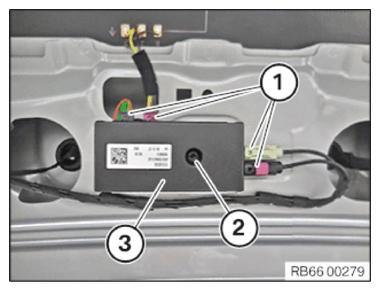

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Antenna amplifier to body
Screw	tightening torque 2.5 Nm
