Install the rear window

NOTE: TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .

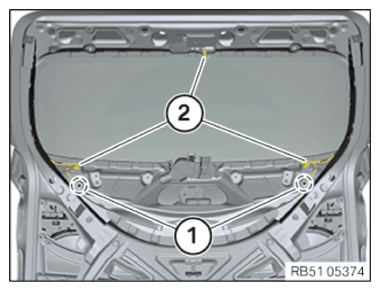

Replace the spacer

Completely remove the spacers (1).
Use spacer 5x5x20 mm.
Parts: Spacer 5x5x20 mm
Bond the new spacer (1) in the center on the embossed mark.
Replace the damaged hook and loop tape (dual-lock tape) (2) at the Rear window and the body.
Parts: Velcro fastener (Dual Lock tape)
Bond the new hook and loop tape (Dual Lock tape) (2) in the center at the embossed mark.

Courtesy of BMW OF NORTH AMERICA, INC.

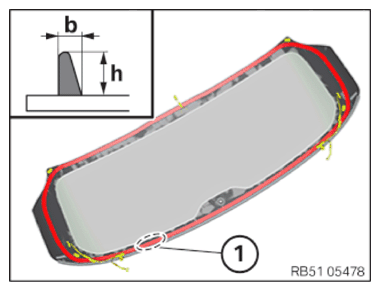

Apply adhesive bead within the mark on the rear window

TECHNICAL DATA SPECIFICATION

Adhesive bead
	b = Width 7 mm... 9 mm h = Height 11 mm... 13 mm

Courtesy of BMW OF NORTH AMERICA, INC.

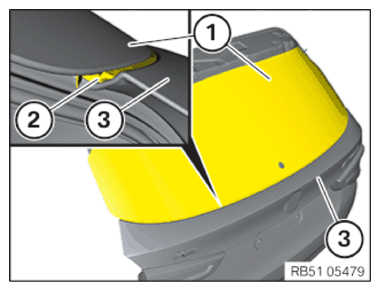

Carefully perform the following actions on rear window (1) with suction lifters:
- Bring it parallel to C-pillar
- apply and press at the bottom on the seal
- Align sides evenly
- evenly press all around and engage at the hook and loop tape (dual-lock tape)
Ensure that the seal (2) is evenly applied on the trunk lid (3).
Secure rear window (1) with adhesive tap on the roof.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the connector (2) and attach the cable clip.
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Ground strap to trunk lid
Oval-head screw	tightening torque 6.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Result

» Measure
