Install the front section of the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

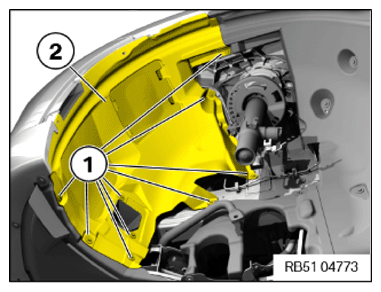

Install the front section of the front wheel arch cover
- Thread in the front section (2) of the front wheel arch cover.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | |
| Thermoplastic hexagon screw | Tightening torque 3 Nm |
