Fasten electric coolant pump and coolant hoses to the front axle support (4-cyl. models)

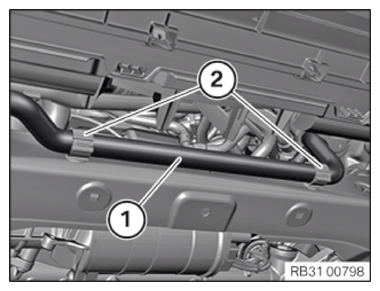

• Secure coolant hose (1) on the holders (2) at the front subframe.

  Courtesy of BMW OF NORTH AMERICA, INC.

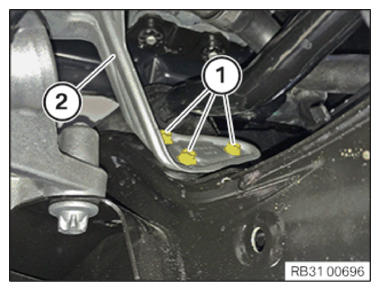

• Position the holder for the electric coolant pump (2) on the front axle support (2).
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Holder to front axle support
M6 Replace screw.	tightening torque  8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
