Check the gap dimension of the hood
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
Check

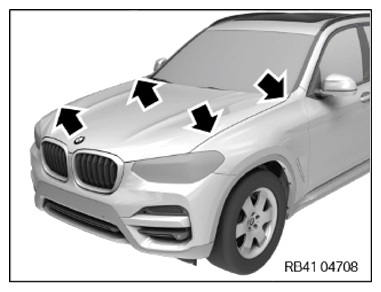

- Check gap dimensions between the hood and the side panels.
Desired state
- Gap dimension does not correspond to specification in BODY DIMENSIONS .
Result
» Gap dimension does not correspond to specification in BODY DIMENSIONS .
Measure
- Adjusting hood.
