Set oscilloscope display alternator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

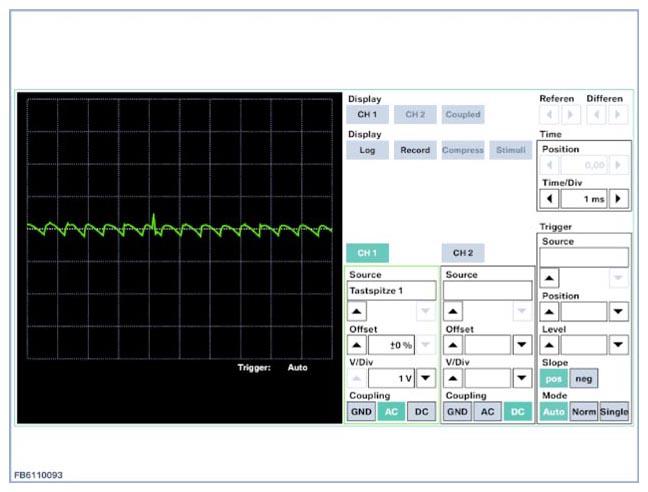

The following image represents the voltage curve of an intact alternator. The height of the individual waves depends on the current load of the alternator. The length of the waves depends on the engine speed. The higher the engine speed the shorter the waves.

At idle speed with consumer units switched on, an error-free alternator should provide approximately this graphic.

Fig 1: Display - Faulty Alternators Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Examples of faulty alternators are shown below.

The current as a function of engine speed also applies here.

Fig 2: Display - Faulty Alternators With Defective Diode Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Alternator with defective diode

Fig 3: Display - Faulty Alternators With Broken Coil Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Alternator with broken coil
