Multifunction steering wheel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The left-hand button pad in the multifunction steering wheel has the following functions:
- Setting the desired driving speed
- Cruise control with brake function or active cruise control

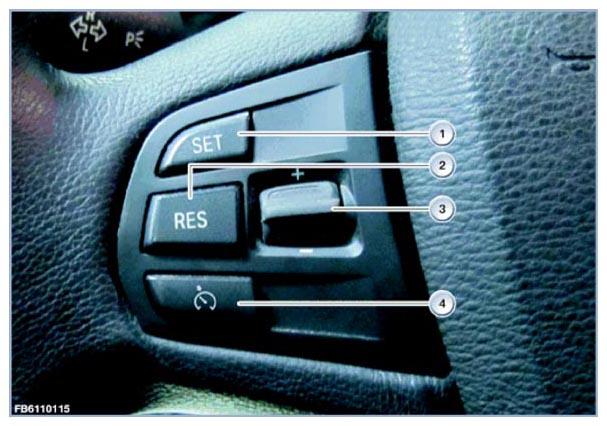

The following graphic shows an example of the left keypad in the multifunction steering wheel for a optional equipment SA544 Cruise control with braking function as an example F25.
| Item | Explanation |
|---|---|
| 1 | Set button |
| 2 | RES button for resumption or loading of stored driving speed |
| 3 | Rocker switch to increase or decrease driving speed |
| 4 | Switch cruise control to stand-by or switch off |

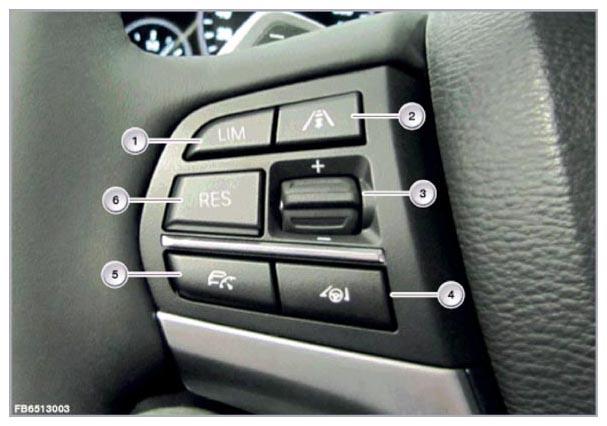

The following graphic shows the left keypad in the multifunction steering wheel for the optional equipment SA5AR traffic jam assistant as an example F15.
| Item | Explanation |
|---|---|
| 1 | LIM button to set the desired driving speed |
| 2 | Button to increase or decrease the distance |
| 3 | Rocker switch to increase or decrease driving speed |
| 4 | Switch traffic jam assistant on or off |
| 5 | Switch cruise control to stand-by or switch off |
| 6 | RES button for resumption or loading of stored driving speed |
The right-hand button pad in the multifunction steering wheel has the following functions:
- Scan audio functions
- Telephone
- Voice input

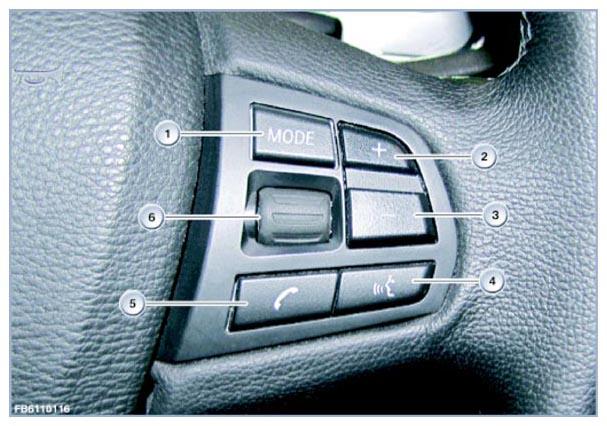

The following graphic shows an example of the right keypad in the multifunction steering wheel as an example F25.
| Item | Explanation |
|---|---|
| 1 | MODE button |
| 2 | Rocker switch + |
| 3 | Toggle switch - |
| 4 | Hands-free button |
| 5 | Telephone key |
| 6 | Knurled wheel for selection list (e.g. in the instrument cluster) |
