System overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

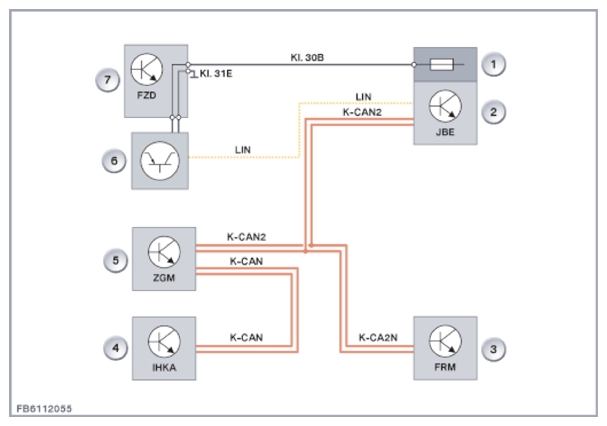

The following graphic shows the system network for the sensor using junction box electronics (JBE) as an example F01:

Fig 1: Central Gateway Module - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Front fuse and relay module
2	Junction Box Electronics (JBE)
3	Footwell module (FRM)
4	Integrated automatic heating/air conditioning system (IHKA)
5	Central gateway module (ZGM)
6	Rain-light-solar-condensation sensor
7	Roof function center (FZD)

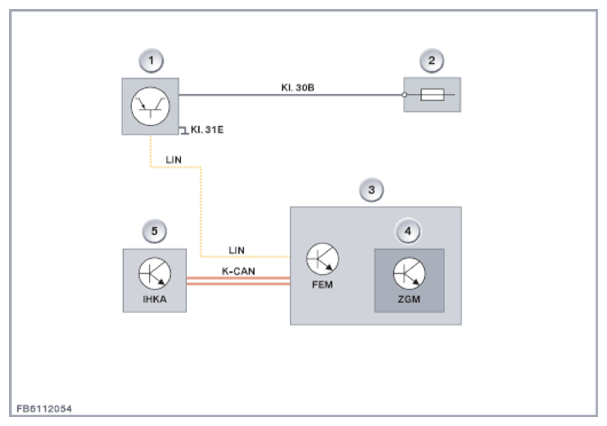

The following graphic shows the system network for the sensor using front electronic module (FEM) as an example F30:

Fig 2: Front Electronic Module - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Rain-light-solar-condensation sensor
2	Front fuse and relay module
3	Front Electronic Module (FEM)
4	Central gateway module (ZGM)
5	Integrated automatic heating/air conditioning system (IHKA)

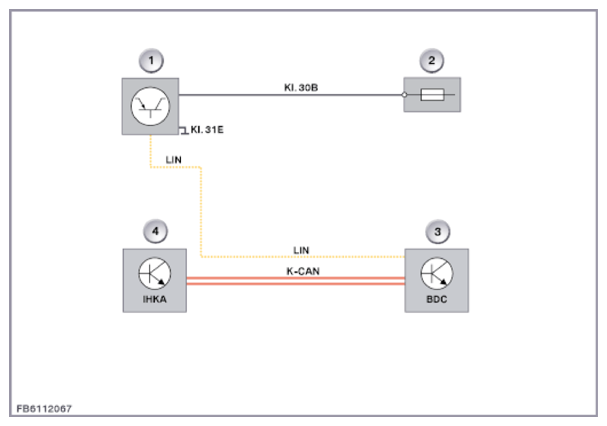

The following graphic shows the system network for the sensor using Body Domain Controller (BDC) as an example F15:

Fig 3: IHKA - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Rain-light-solar-condensation sensor
2	Front fuse and relay module
3	Body Domain Controller
4	Integrated automatic heating/air conditioning system (IHKA)
