JBE: Junction Box Electronics
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The JBE processes the signals from the power window switches in the rear doors and also the power window switch in the front passenger door.
The JBE electrically activates the rear power window regulators.

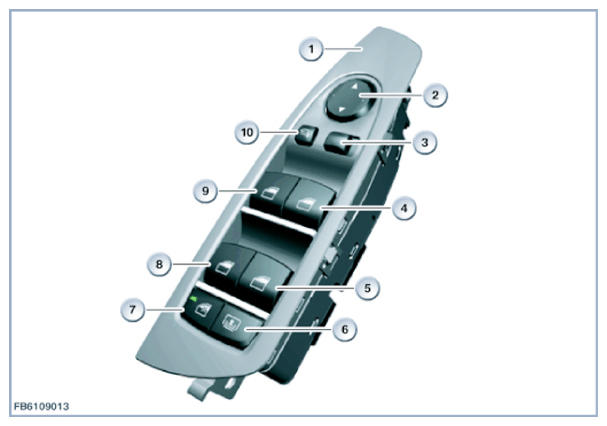

F01 shown
| Item | Explanation |
|---|---|
| 1 | Driver's door switch block |
| 2 | Switch for exterior mirror adjustment |
| 3 | Selector switch for exterior mirror on left or right |
| 4 | Button for power windows in the front door on the right |
| 5 | Button for power windows in the rear door on the right |
| 6 | Button for roller sunblind |
| 7 | Child safety lock switch with function indicator light |
| 8 | Button for power windows in the rear door on the left |
| 9 | Button for power windows in the front door on the left |
| 10 | Button for folding in the exterior mirror (only with exterior mirrors in High version) |
