System functions: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The following system functions are described for power management ("Advanced Power Management"):
- Reduction or shutdown of individual electrical consumer
- Control of the electric auxiliary heater
- Idle speed increase.
- Optimized charging voltage and vehicle voltage.
- Identification of poor charge balance.

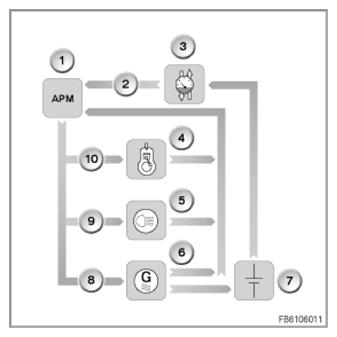

| Index | Explanation |
|---|---|
| 1 | Advanced Power Management (APM) |
| 2 | Battery data (current, voltage and temperature) |
| 3 | Intelligent battery sensor (IBS) |
| 4 | Engine |
| 5 | Consumer |
| 6 | Alternator (G) |
| 7 | Battery |
| 8 | Specified setpoint value for charging voltage |
| 9 | Reduction of the power consumption or deactivation of individual electrical consumers |
| 10 | Idle speed increase |
