IBS: Intelligent battery sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The intelligent battery sensor (IBS) is a mechatronic component with its own microcontroller for monitoring the battery condition. The IBS continuously measures the following values on the battery:
- Voltage
- Charge and discharge current
- Battery temperature

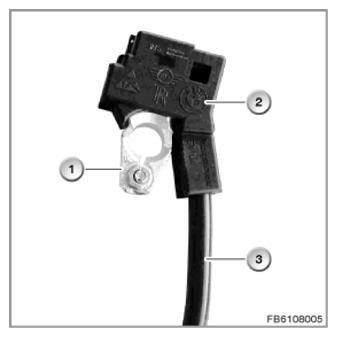

| Index | Explanation |
|---|---|
| 1 | Negative battery terminal |
| 2 | Intelligent battery sensor |
| 3 | Battery earth lead |
For data transfer, the IBS is connected to the DME (Digital Motor Electronics) or DDE (Digital Diesel Electronics) via a local interconnect network bus (LIN bus).
