Functional networking, vehicle electrical system support
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

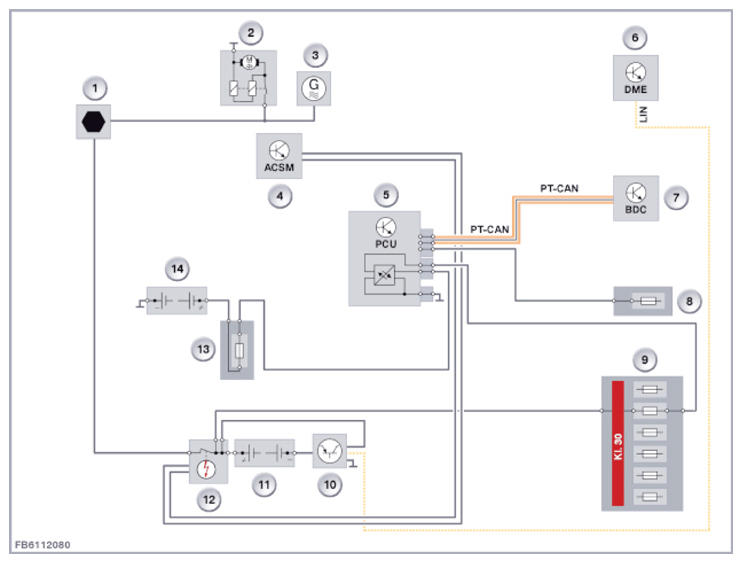

The following graphics show the functional networking.
| Item | Explanation |
|---|---|
| 1 | Jump start terminal point |
| 2 | Starter motor |
| 3 | Alternator |
| 4 | Crash Safety Module (ACSM) |
| 5 | Power Control Unit (PCU) |
| 6 | Digital engine electronics |
| 7 | Body Domain Controller |
| 8 | Power distribution box, right rear |
| 9 | Power distribution box, battery |
| 10 | Intelligent battery sensor |
| 11 | System battery |
| 12 | Safety battery terminal |
| 13 | Additional fuse carrier |
| 14 | Auxiliary battery |
