System battery and auxiliary battery
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Both batteries are installed in the luggage compartment together with the PCU control unit.
The vehicle electrical system battery is an AGM battery with 90 Ah. The auxiliary battery is a 50 Ah AGM battery.
The electrical connections are presented in the functional networking.

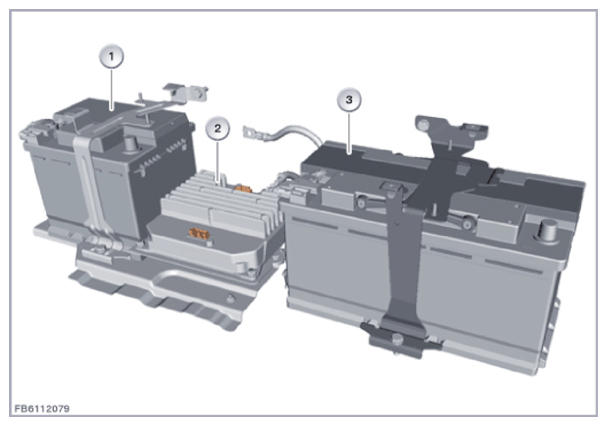

| Item | Explanation |
|---|---|
| 1 | Auxiliary battery |
| 2 | PCU control unit |
| 3 | System battery |
