Center console operating facility
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The parking button is located on the center console operating facility. The parking maneuvering assistant is switched on using the parking button.
The parking maneuvering assistant is activated by engaging the reverse gear.
The center console operating facility is connected to the Integrated Chassis Management. The locator lighting signal supplies the Front Electronic Module (FEM).

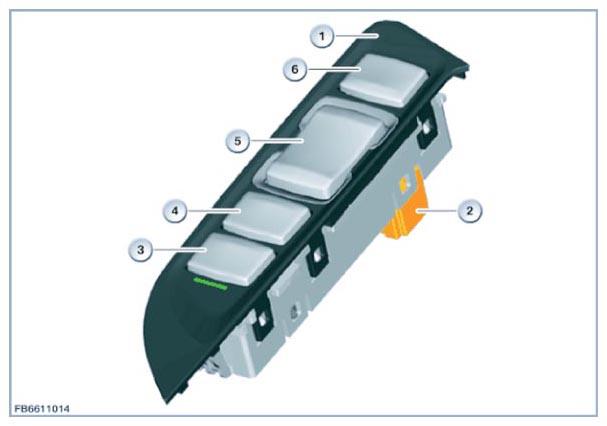

| Index | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | 10-pin plug connection |
| 3 | Park assist button (PDC and PMA) |
| 4 | Button for bumper camera |
| 5 | Driver experience switch with ECO PRO mode) |
| 6 | Button DSC OFF |
