Parking brake (electromechanical parking brake = EMF): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The electromechanical parking brake is the same as a handbrake. The EMF actuator is integrated in the brake caliper. The parking brake is operated using the parking brake button in the center console.
Deployment of the electromechanical parking brake has the following advantages:
- Operation via the ergonomic button in the center console
- Safe engagement and disengagement of the electromechanical parking brake (EMF) under all preconditions
- Dynamic emergency braking function is ensured even with low coefficient of friction via the control systems (ABS)
- Space for additional storage options in the area of the center console in that no parking brake lever is required.

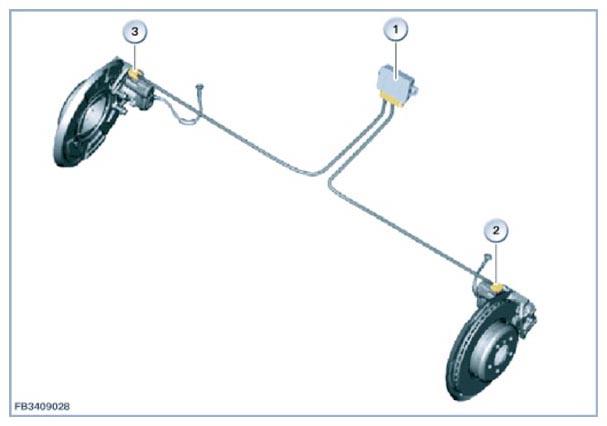

| Item | Description |
|---|---|
| 1 | Parking brake control unit |
| 2 | EMF actuator, rear left |
| 3 | EMF actuator, rear right |
The parking brake serves to secure the stationary vehicle to prevent it rolling away. The parking brake retaining force is applied electromechanically to the rear wheels via both EMF actuators.
