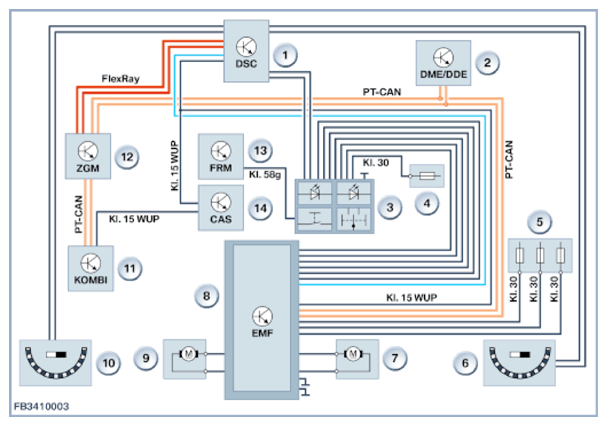

System network
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Dynamic stability control (DSC) |
| 2 | DME (Digital Motor Electronics) or DDE (Digital Diesel Electronics) |
| 3 | Parking brake button with function indicator light (left: Automatic Hold button) |
| 4 | Fuse, front power distribution box |
| 5 | Fuse, rear power distribution box |
| 6 | Rear right wheel speed sensor |
| 7 | EMF actuator, rear right |
| 8 | Parking brake control unit |
| 9 | EMF actuator, rear left |
| 10 | Rear left wheel speed sensor |
| 11 | Instrument panel (KOMBI) |
| 12 | Central gateway module (ZGM) |
| 13 | Footwell module (FRM) |
| 14 | Car Access System (CAS) |
The following additional control units are involved in the electromechanical parking brake (EMF):
