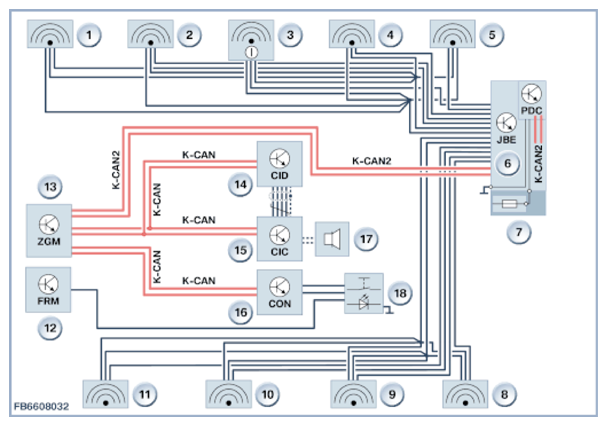

| Index | Explanation |
|---|---|
| 1 | Ultrasonic sensor, front left side |
| 2 | Ultrasonic sensor, front outer left |
| 3 | Ultrasonic sensor, front center (only F01, F02, F03, F04) |
| 4 | Ultrasonic sensor, front outer right |
| 5 | Ultrasonic sensor, front right side |
| 6 | Junction Box Electronics (JBE) |
| 7 | Power distribution box |
| 8 | Ultrasonic sensor, rear outer right |
| 9 | Ultrasonic sensor, rear center right |
| 10 | Ultrasonic sensor, rear center left |
| 11 | Ultrasonic sensor, rear outer left |
| 12 | Footwell module (FRM) |
| 13 | Central gateway module (ZGM) |
| 14 | Central information display (CID) |
| 15 | Car information computer (CIC) |
| 16 | Controller (CON) |
| 17 | Acoustic signal output |
| 18 | Center console operating facility |
