PDC button in the center console operating facility
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The PDC button switches the park distance control on or off (see Owner's Handbook). When the PDC is switched on, the function LED lights up.
The PDC button is located in the center console operating facility. Electrically, the PDC button is connected to the controller (CON).

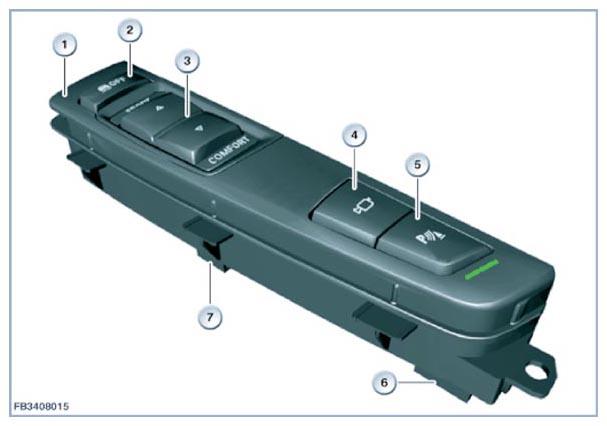

The graphic shows the BMW 7-Series.
| Index | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | DTC button |
| 3 | Drive dynamics control switch |
| 4 | Button for bumper camera |
| 5 | PDC button with function indicator light as well as button for reversing camera |
| 6 | 4-pin plug connection |
| 7 | six-pin plug connection |
