Arrangement of the rear ultrasonic sensors

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

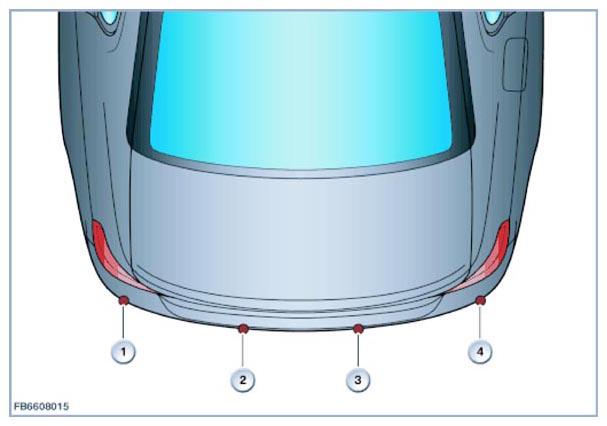

Fig 1: Identifying Rear Ultrasonic Sensors Components
G09909322Courtesy of BMW OF NORTH AMERICA, INC.

The graphic shows the BMW 7-Series.

Index Explanation
1 Ultrasonic sensor, rear outer left
2 Ultrasonic sensor, rear center left
3 Ultrasonic sensor, rear center right
4 Ultrasonic sensor, rear outer right
