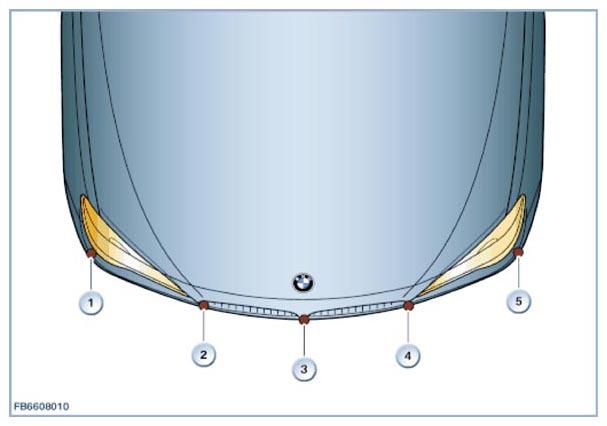

Arrangement of the front ultrasonic sensors
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of BMW OF NORTH AMERICA, INC.
The graphic shows the BMW 7-Series.
| Index |
Explanation |
| 1 |
Ultrasonic sensor, front right side |
| 2 |
Ultrasonic sensor, front outer right |
| 3 |
Ultrasonic sensor, front center (only F01, F02, F03, F04) |
| 4 |
Ultrasonic sensor, front outer left |
| 5 |
Ultrasonic sensor, front left side |
