Oscilloscope measurement of the Local Interconnect Network bus signal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

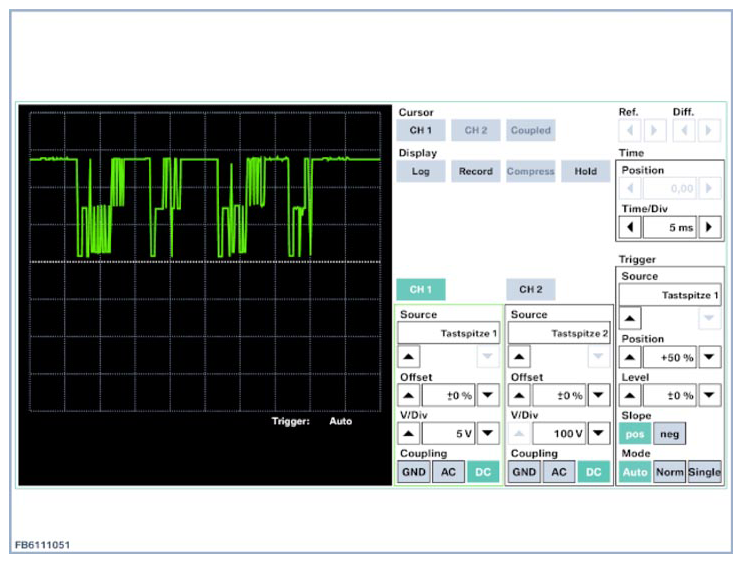

Comparison image for oscilloscope measurement of Local Interconnect Network bus signal.
The measuring results represents a quantitative illustration of a LIN signal. It only used to determine whether or not a LIN signal is present. Therefore, the measured signal must approximately match the figure below.
