Oscilloscope measurement of the LIN bus signal to the ring aerial

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Comparison image for oscilloscope measurement of Local Interconnect Network bus signal .

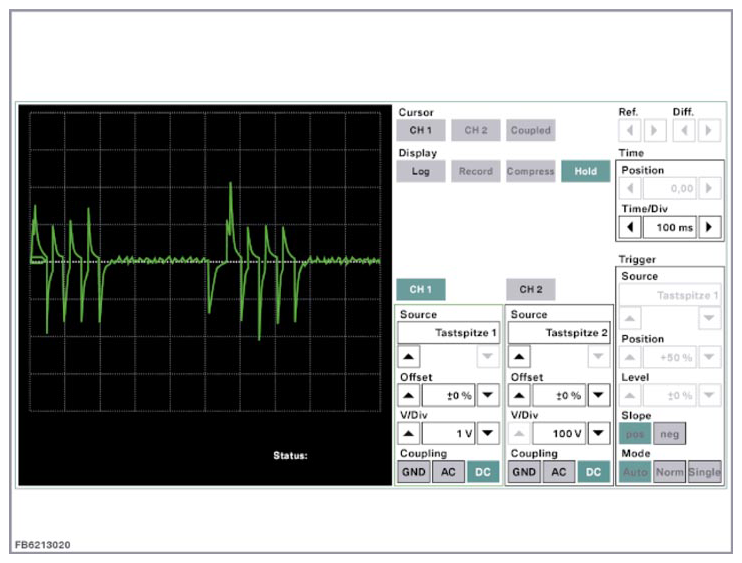

Fig 1: Display - LIN Bus Signal To Ring Aerial Screen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The measuring results represents a quantitative illustration of a LIN signal. It only used to determine whether or not a LIN signal is present. Therefore, the measured signal must approximately match the figure below.
