TFT display

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

In the instrument panel, a horizontal 960 x 160 pixel TFT display is integrated under the round instrument. The large analogue round instruments are open in a downward direction. These round instruments are closed by graphics of the display.

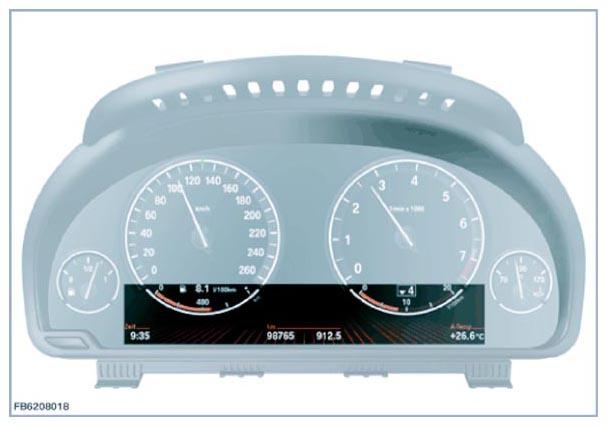

Fig 1: Display - Round Instruments Closed Screen
G09909164Courtesy of BMW OF NORTH AMERICA, INC.
