Instrument panel (KOMBI): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Various instrument clusters are used for the driver's information. These instrument clusters are developed by various suppliers (Continental and Johnson Controls).

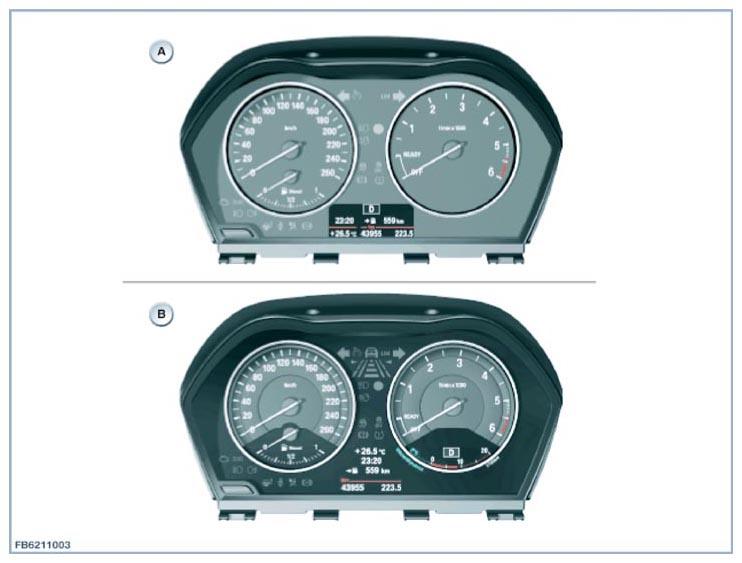

| Item | Explanation |
|---|---|
| A | Basic version of instrument cluster |
| B | High version of instrument cluster |
NOTE:
The instrument cluster also has the LIM
indicator light. For a speed limit set using the button on the steering wheel, this indicator light illuminates either green on red (exceeded).
