Instrument cluster
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The instrument cluster (KOMBI) is connected to the PT-CAN. The passenger's side power distribution box supplies the instrument cluster with terminal 30B. The front electronic module (FEM) supplies the instrument cluster with terminal 30. The basic version of the instrument cluster has just one plug connection. The high version of the instrument cluster additionally has a MOST interface.

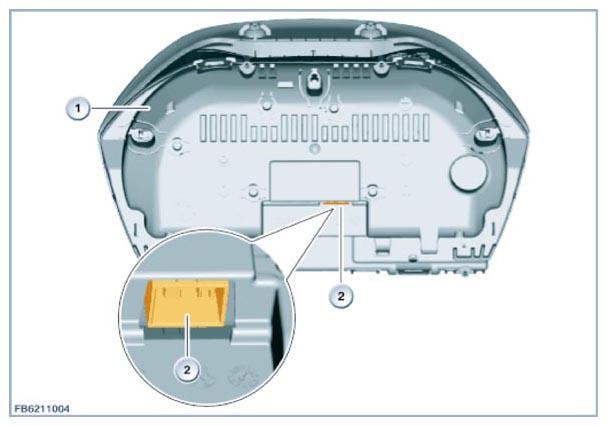

Basic version shown
| Item | Explanation |
|---|---|
| 1 | Instrument panel (KOMBI) |
| 2 | 12-pin plug connection |
