Control unit (JBE, FEM, or BDC, depending on the series)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The corresponding control unit receives the information from the inside mirror via the local interconnect network bus and makes the information available also to other control units via the K-CAN.

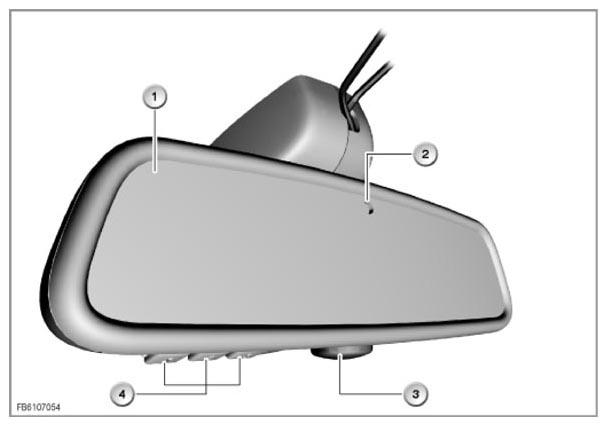

Sample graphic of inside mirror
| Item | Explanation |
|---|---|
| 1 | Inside mirror glass (electrochromic) |
| 2 | Photosensor for automatic-dim feature (electrochromic) |
| 3 | LED for the anti-theft alarm system (DWA) |
| 4 | Buttons for the garage door opener |
