Switch block seat adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The passenger side and driver's side switch blocks are generally the same and located on the side of the seat that faces the door.
Depending on the seat version and the optional equipment, the following buttons are integrated in the switch block:
- Lumbar support switch
- Switch for backrest angle adjustment
- Buttons for backrest width adjustment
- Switch for forward/back, height and seat angle adjustment
- Memory switch with two position buttons

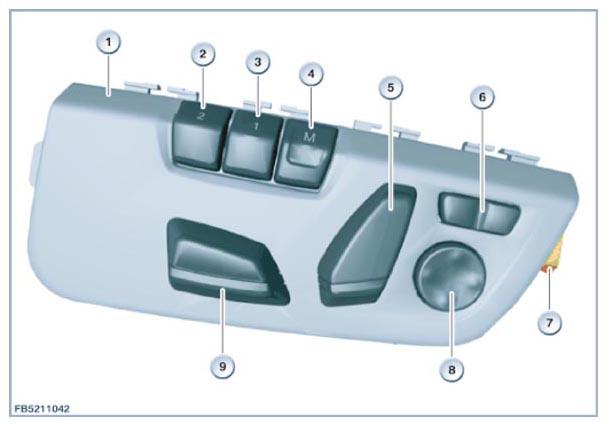

| Item | Explanation |
|---|---|
| 1 | Seat adjustment switch block, driver's side (left hand drive vehicle) |
| 2 | Position button 2 (retrieve seat position) |
| 3 | Position button 1 (retrieve seat position) |
| 4 | Memory button (store seat position) with function indicator light |
| 5 | Switch for backrest angle adjustment |
| 6 | Switch for seat back width adjustment |
| 7 | six-pin plug connection |
| 8 | Lumbar support switch |
| 9 | Switch for forward/back, height and seat angle adjustment |
