Seat heating
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The seat heating includes backrest heating and seat cushion heating.
The seat heating can be switched on separately for the driver's and front passenger seat as of terminal 15 On using the buttons in the control panel of the integrated automatic heating and air conditioning system (IHKA). The IHKA control unit processes the respective button signal. The IHKA control unit sends the button signal as a message to the corresponding seat module via K-CAN. According to the selected heating stage, the seat module generates a signal that is used to activate the seat heating. A temperature sensor monitors the seat heating. The temperature is integrated in the seat heating pad of the seat surface and connected to the seat module.

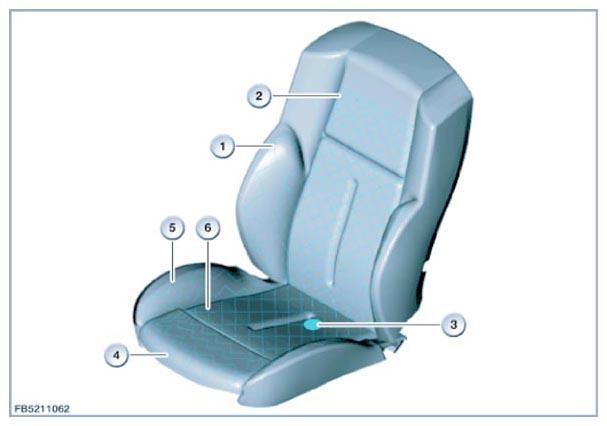

| Item | Explanation |
|---|---|
| 1 | Heater element in the side sections of the backrest |
| 2 | Heated area in the backrest |
| 3 | Temperature sensor in the seat cushion |
| 4 | Heated area in the thigh support |
| 5 | Heated area in the side sections of the seat surface |
| 6 | Heated area in the seat surface |
