Electrically adjustable seats: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
The following seat versions are used:
- Basic seat
- Sports seat
- Seats for Coupe and convertible
Depending on the seat version and the optional equipment, the following seat functions are possible:
- Forward/back seat adjustment
- Seat height adjustment
- Seat-tilt adjustment
- Seat depth adjustment (manual and sports seat only)
- Backrest angle adjustment
- Backrest width adjustment (sports seat only)
- Head restraint height adjustment (manual only)
- Head restraint angle adjustment (manual only)
- Lumbar-support adjustment

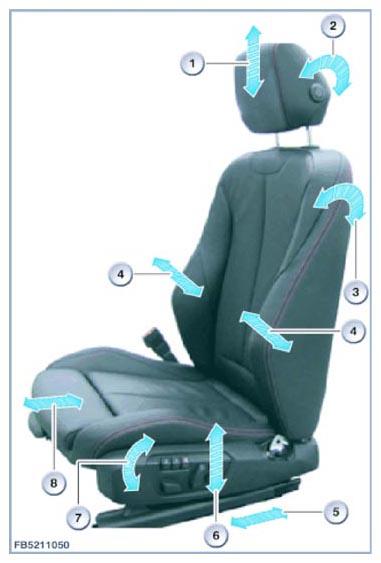

The graphic below shows the electrically adjustable sports seat with lumbar support and backrest width adjustment.
| Item | Explanation |
|---|---|
| 1 | Headrest restraint height adjustment |
| 2 | Head restraint angle adjustment |
| 3 | Backrest angle adjustment |
| 4 | Seat backrest width adjustment |
| 5 | Horizontal seat adjustment |
| 6 | Seat height adjustment |
| 7 | Seat tilt angle adjustment |
| 8 | Seat depth adjustment |
